Technical parameters of YE4 series motors
Type	Output		Full Load				NoisedB(A)	Vibration(mm/s)	LRT	BDT	LRA	weight(kg)
Type	(kw)	(HP)	Current(A)	Speed（r/min）	Eff（%）	P.F.(Cosφ)	NoisedB(A)	Vibration(mm/s)	RLT	RLT	RLA	weight(kg)
Synchronous Speed3000r/min(2p)
YE4-80M1-2	0.75	1	1.64	2870	83.5	0.83	62	1.6	2.2	2.3	8.5	19
YE4-80M2-2	1.1	1.5	2.36	2870	85.2	0.83	62	1.6	2.2	2.3	8.5	20
YE4-90S-2	1.5	2	3.1	2900	86.5	0.85	67	1.6	2.2	2.3	9	25
YE4-90L-2	2.2	3	4.42	2900	88	0.86	67	1.6	2.2	2.3	9	35
YE4-100L-2	3	4	5.9	2900	89.1	0.87	74	1.6	2.2	2.3	9.5	45
YE4-112M-2	4	5.5	7.7	2910	90	0.88	77	1.6	2.2	2.3	9.5	50
YE4-132S1-2	5.5	7.5	10.4	2940	90.9	0.88	79	1.6	2	2.3	9.5	85
YE4-132S2-2	7.5	10	14	2940	91.7	0.89	79	1.6	2	2.3	9.5	95
YE4-160M1-2	11	15	20.3	2950	92.6	0.89	81	2.2	2	2.3	9.5	135
YE4-160M2-2	15	20	27.4	2950	93.3	0.89	81	2.2	2	2.3	9.5	150
YE4-160L-2	18.5	25	33.7	2950	93.7	0.89	81	2.2	2	2.3	9.5	170
YE4-180M-2	22	30	40	2960	94	0.89	83	2.2	2	2.3	9.5	245
YE4-200L1-2	30	40	54.2	2970	94.5	0.89	84	2.2	2	2.3	9	330
YE4-200L2-2	37	50	66.6	2970	94.8	0.89	84	2.2	2	2.3	9	345
YE4-225M-2	45	60	80.9	2970	95	0.89	86	2.2	2	2.3	9	440
YE4-250M-2	55	75	98.5	2975	95.3	0.89	89	2.2	2	2.3	9	550
YE4-280S-2	75	100	134	2980	95.6	0.89	91	2.2	1.8	2.3	8.5	685
YE4-280M-2	90	125	160	2980	95.8	0.89	91	2.2	1.8	2.3	8.5	735
YE4-315S-2	110	150	196	2980	96	0.89	92	2.8	1.8	2.3	8.5	1300
YE4-315M-2	132	180	234	2980	96.2	0.89	92	2.8	1.8	2.3	8.5	1370
YE4-315L1-2	160	220	284	2980	96.3	0.89	92	2.8	1.8	2.2	8.5	1465
YE4-315L2-2	185	250	328	2980	96.4	0.89	92	2.8	1.8	2.2	8.5	1545
YE4-315L2-2	200	270	354	2980	96.5	0.89	92	2.8	1.8	2.2	8.5	1560
YE4-355M1-2	220	300	381	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1720
YE4-355M2-2	250	340	433	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1830
YE4-355L1-2	280	380	484	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1960
YE4-355L2-2	315	430	545	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	2160
YE4-3551-2	355	475	621	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2280
YE4-3552-2	375	500	656	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2320
YE4-3552-2	400	535	700	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2360
YE4-3553-2	450	600	787	2985	96.5	0.9	97	2.8	0.8	1.8	8.6	2440
Synchronous Speed1500r/min(4P)
YE4-80M1-4	0.55	0.75	1.33	1435	83.9	0.75	56	1.6	2.3	2.3	8.5	18
YE4-80M2-4	0.75	1	1.8	1435	85.7	0.74	56	1.6	2.3	2.3	8.5	20
YE4-90S4	1.1	1.5	2.56	1440	872	0.75	59	1.6	2.3	2.3	8.5	27
YE4-90L-4	15	2	3.4	1440	88.2	0.76	59	1.6	2.3	2.3	9	30
YE4-100L1-4	2.2	3	4.73	1460	89.5	0.79	64	1.6	2.3	2.3	9	43
YE4-100L2-4	3	4	6.3	1460	90.4	0.8	64	1.6	2.3	2.3	9.5	50
YE4-112M-4	4	5.5	8.3	1460	91.1	8	65	1.6	2.3	2.3	9.5	55
YE4-132S-4	5.5	7.5	11.4	1470	91.9	0.8	71	1.6	2	2.3	9.5	100
YE4-132M-4	7.5	10	15.2	1470	92.6	0.81	71	1.6	2	2.3	9.5	115
YE4-160M-4	11	15	21.6	1475	93.3	0.83	73	2.2	2	2.3	9.5	150
YE4-160L-4	15	20	28.9	1475	93.9	0.84	73	22	2	2.3	9.5	175
YE4-180M-4	18.5	25	35.1	1480	94.2	0.85	76	2.2	2	2.3	9.5	245
YE4-180L-4	22	30	41.6	1480	94.5	0.85	76	2.2	2	2.3	9.5	260
YE4-200L-4	30	40	56.5	1485	94.9	0.85	76	2.2	2	2.3	9	370
YE4-225S-4	37	50	69.5	1485	95.2	0.85	78	2.2	2	2.3	9	410
YE4-225M-4	45	60	84.3	1485	95.4	0.85	78	2.2	2	2.3	9	435
YE4-250M-4	55	75	102	1485	95.7	0.86	79	2.2	2	2.3	9	555
YE4-280S-4	75	100	136	1488	96	0.87	80	2.2	2	2.3	8.5	720
YE4-280M-4	90	125	162	1488	96.1	0.88	80	2.2	2	2.3	8.5	790
YE4-315S-4	110	150	195	1490	96.3	0.89	88	2.8	1.8	2.2	8.5	1320
YE4-315M-4	132	180	234	1490	96.4	0.89	88	2.8	1.8	2.2	8.5	1390
YE4-315L1-4	160	220	280	1490	96.6	9	88	2.8	1.8	2.2	8.5	1460
YE4-315L2-4	185	250	323	1490	96.7	9	88	2.8	1.8	22	8.5	1520
YE4-315L2-4	200	270	349	1490	96.7	0.9	88	2.8	1.8	22	8.5	1545
YE4-355M1-4	220	300	384	1490	96.7	0.9	92	2.8	1.8	22	8.5	1750
YE4-355M2-4	250	340	436	1490	96.7	0.9	92	2.8	1.8	2.2	8.5	1840
YE4-355L1-4	280	380	489	1490	96.7	0.9	92	2.8	1.8	22	8.5	1930
YE4-355L2-4	315	430	550	1490	96.7	0.9	92	2.8	1.8	2.2	8.5	2280
YE4-3551-4	355	475	634	1490	96.7	0.88	92	2.8	0.9	1.8	8.5	2400
YE4-3552-4	375	500	670	1490	96.7	0.88	92	2.8	0.9	18	8.5	2440
YE4-3552-4	400	535	714	1490	96.7	0.88	92	2.8	0.9	18	8.5	2480
YE4-3553-4	450	600	803	1490	96.7	0.88	92	2.8	0.8	1.8	8.5	2560
Synchronous Speed1000r/min(6P)
YE4-90S-6	0.75	1	1.97	950	82.7	0.7	57	1.6	2.1	2.1	7.5	25
YE4-90L6	1.1	1.5	2.83	950	84.5	0.7	57	1.6	2.1	2.1	7.5	30
YE4-100L-6	15	2	3.74	955	85.9	0.71	61	1.6	2.1	2.1	7.5	40
YE4-112M-6	2.2	3	5.4	960	87.4	0.71	65	1.6	2.1	2.1	7.5	46
YE4-132S-6	3	4	72	970	88.6	0.71	69	1.6	2	2.1	7.5	85
YE4-132M1-6	4	5.5	9.4	970	89.5	0.72	69	1.6	2	2.1	8	95
YE4-132M2-6	5.5	7.5	12.8	970	90.5	0.72	69	1.6	2	2.1	8	110
YE4-160M-6	7.5	10	16.4	975	91.3	0.76	73	2.2	2	2.1	8	150
YE4-160L-6	11	15	23.5	975	92.3	0.77	73	2.2	2	2.1	8.5	170
YE4-180L-6	15	20	30.7	980	92.9	0.8	73	2.2	2	2.1	8.5	205
YE4-200L1-6	18.5	25	37.6	985	93.4	0.8	73	2.2	2	2.1	8.5	310
YE4-200L2-6	22	30	44	985	93.7	0.81	73	2.2	2	2.1	8.5	330
YE4-225M-6	30	40	59	985	94.2	0.82	74	2.2	2	2.1	8.3	400
YE4-250M-6	37	50	71.7	985	94.5	0.83	76	2.2	2	2.1	8.3	480
YE4-280S-6	45	60	86.9	990	94.8	0.83	78	2.2	2	2	8.5	705
YE4-280M-6	55	75	105	990	95.1	0.84	78	2.2	2	2	8.5	765
YE4-315S-6	75	100	142	990	95.4	0.84	83	2.8	1.6	2	8	1265
YE4-315M-6	90	125	168	990	95.6	0.85	83	2.8	1.6	2	8	1335
YE4-315L1-6	110	150	205	990	95.8	0.85	83	2.8	1.6	2	8	1465
YE4-315L2-6	132	180	243	990	96	0.86	83	2.8	1.6	2	8	1525
YE4-355M1-6	160	220	294	990	96.2	0.86	85	2.8	1.6	2	8	1680
YE4-355M2-6	185	250	339	990	96.3	0.86	85	2.8	1.6	2	8	1780
YE4-355M2-6	200	270	367	990	96.3	0.86	85	2.8	1.6	2	8	1810
YE4-355L1-6	220	300	403	990	96.4	0.86	85	2.8	1.6	2	8	1960
YE4-355L2-6	250	340	458	990	96.5	0.86	85	2.8	1.6	2	8	2250
YE4-3551-6	280	380	537	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2440
YE4-3552-6	315	430	604	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2490
YE4-3553-6	355	475	681	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2550
Synchronous Speed750r/min(8P)
YE4-100L1-8	0.75	1	2.2	700	78.4	0.66	59	1.6	2	2	7	45
YE4-100L2-8	1.1	1.5	3.09	700	80.8	0.67	59	1.6	2	2	7	47
YE4-112M-8	1.5	2	4	705	82.6	0.69	61	1.6	2	2	7	50
YE4-132S-8	2.2	3	5.7	715	84.5	0.7	64	1.6	1.8	2	7.5	65
YE4-132M-8	3	4	7.6	715	85.9	0.7	64	1.6	1.8	2	7.8	75
YE4-160M1-8	4	5.5	9.8	720	87.1	0.71	68	2.2	1.8	2	7.9	105
YE4-160M2-8	5.5	7.5	13.1	720	88.3	0.72	68	2.2	1.8	2	8.1	125
YE4-160L-8	7.5	10	17.2	720	89.3	0.74	68	2.2	1.8	2	7.8	135
YE4-180L-8	11	15	25	725	90.4	0.74	70	2.2	1.8	2	7.9	200
YE4-200L-8	15	20	33.3	730	91.2	0.75	73	2.2	1.8	2	8	240
YE4-225S-8	18.5	25	40.9	730	91.7	0.75	73	2.2	1.8	2	8.1	280
YE4-225M-8	22	30	47.8	730	92.1	0.76	73	2.2	1.8	2	8.3	310
YE4-250M-8	30	40	63.9	735	92.7	0.77	75	2.2	1.8	2	7.9	400
YE4-280S-8	37	50	77.4	735	93.1	0.78	76	2.2	1.8	2	7.9	530
Ye4-280M-8	45	60	93.9	735	93.4	0.78	76	2.2	1.8	2	7.9	590
YE4-315S-8	55	75	111	740	93.7	0.8	82	2.8	1.6	2	8.2	790
YE4-315M-8	75	100	151	740	94.2	0.8	82	2.8	1.6	2	7.6	1100
YE4-315L1-8	90	125	179	740	94.4	0.81	82	2.8	1.6	2	7.7	1160
YE4-315L2-8	110	150	218	740	94.7	0.81	82	2.8	1.6	2	7.7	1260
YE4-355M1-8	132	180	261	743	94.9	0.81	89	2.8	1.6	2	7.7	1760
YE4-355M2-8	160	220	312	743	95.1	0.82	89	2.8	1.6	2	7.7	1850
YE4-355L1-8	185	250	360	743	95.3	0.82	89	2.8	1.6	2	7.8	1990
YE4-355L2-8	200	270	388	743	95.4	0.82	89	2.8	1.6	2	7.8	2380
YE4-3551-8	220	300	438	740	95.4	0.8	89	2.8	1.1	1.8	7.6	2430
YE4-3552-8	250	340	498	740	95.4	0.8	89	2.8	1.1	1.8	7.6	2500
YE4-3553-8	280	380	557	740	95.4	0.8	89	2.8	0.9	1.8	7.6	2980
YE4-3553-8	315	430	627	740	95.4	0.8	89	2.8	0.9	1.8	7.6	3100

Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

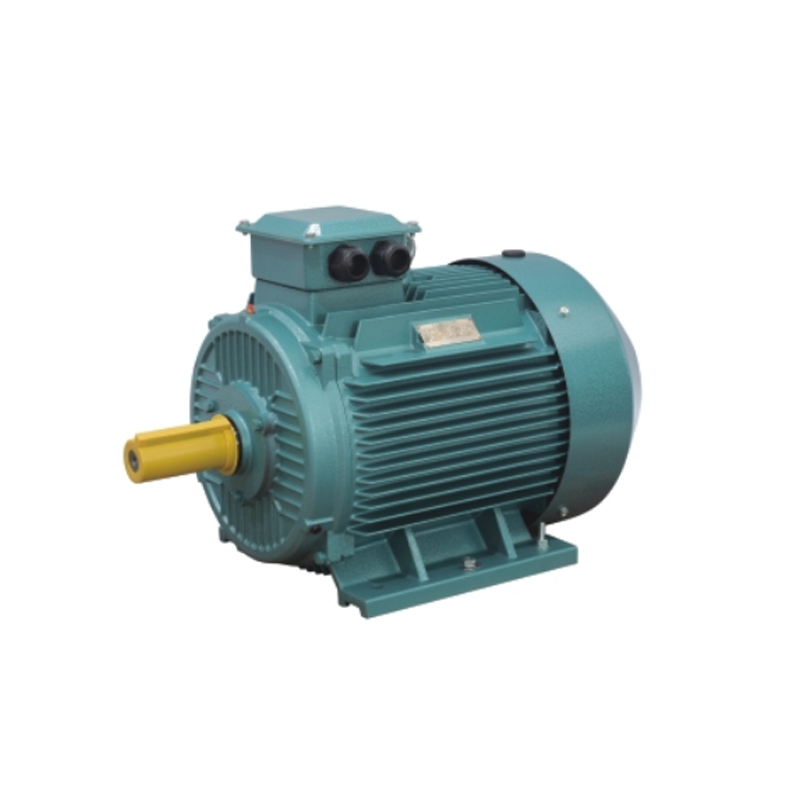

YE4 series three phase asynchronous motor

Product description
